Milling tools | CoCr/Titanium
Optimized for CoCr/Titanium
compatible with CORITEC machines
The combination with the high-quality coating ensures a long service life of the tool and achieves excellent surfaces on the workpiece.
PRODUCT DESCRIPTION

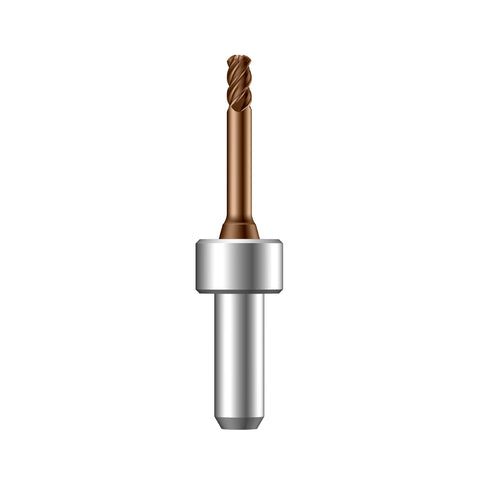

T61 – Torus end mill, diameter 3.0 mm, for machining CoCr and titanium. Carbide substrate, specially treated cutting edge, and coordinated coating for optimal results and long tool life in rough machining.
SPECIAL COATING
Benefit from special coatings optimally tailored to the CoCr/titanium machining process. The adapted cutting edge geometry combined with premium carbide makes our metal milling cutters high-performance tools for optimal service life and high surface quality.
|
T1/T6 |
T2/T7 |
T3/T8 |
T4/T9 |
T2/T7 |
T3/T8 |
|
|
Type of tools |
Ball nose cutter |
Ball nose cutter |
Ball nose cutter |
Ball nose cutter |
Ball nose cutter |
Ball nose cutter |
|
Cutting diameter |
3.0 |
2.0 |
1.5 |
1.0 |
2.0 |
1.5 |
|
radius |
1.5 |
1.0 |
0.75 |
0.5 |
1.0 |
0.75 |
|
Shaft diameter (mm) |
3 | 3 | 3 | 3 | 6 | 6 |
|
layer |
COATED |
COATED |
COATED |
COATED |
COATED |
COATED |
|
Free grinding length (mm) |
15 |
12 | 12 | 9 | 12 | 12 |
|
Article number |
MT0103195 |
MT0103200 |
MT0103205 |
MT0103210 |
MT0106010 |
MT0106015 |
|
T4/T9 |
T20 |
T61 |
T110 |
T111 |
T112 |
|
| Type of tools |
Ball nose cutter |
Conical milling cutter |
Torus cutter |
Ball nose cutter |
Ball nose cutter |
Torus cutter |
|
Cutting diameter |
1.0 |
0.6 |
3.0 |
1.5 |
1.5 |
1.0 |
|
radius |
0.5 |
0.3 |
1.0 |
0.75 |
0.75 |
0.1 |
|
Shaft diameter (mm) |
6 |
6 |
6 |
6 |
6 |
6 |
|
layer |
COATED |
COATED |
COATED |
COATED |
COATED |
COATED |
|
Free grinding length (mm) |
8.5 |
conical |
15.5 |
10 |
10 |
9 |
|
Article number |
MT0106020 |
MT0106085 |
MT0106150 |

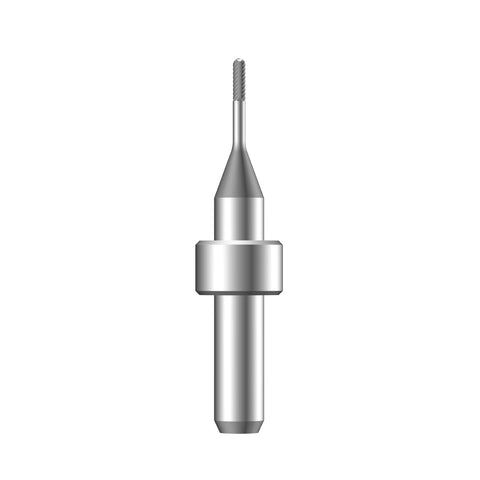

MT0106310 |
MT0106315 |
MT0106295 |
