Fräsmaschine coritec 350i mit Loader
Fräsmaschine coritec 350i pro
-25%
imes-icore GmbH

CORiTEC® 350i PRO+ series | milling machine

SKU: CAM 0912.8
variant

€59.450,00


PROFESSIONAL SOLUTION FOR THE HIGHEST DEMANDS

The high-resolution, dynamic servo motors with absolute measuring systems used in the CORiTEC® 350i PRO+ series ensure up to 20% faster processing with optimal precision. Another advantage of the PRO series is that this machine system is constructed from a one-piece machine frame made of polymer concrete, thus ensuring the highest possible stability for vibration-free processing. The CORiTEC® 350i Loader PRO/PRO+ with fully automated blank magazine also enables versatile processing of up to 12 blanks in unmanned operation.

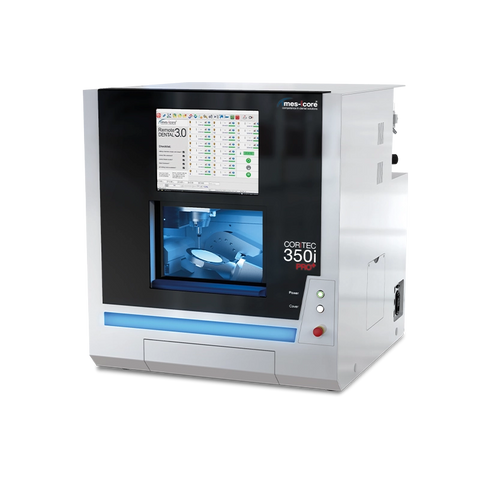

CORiTEC® 350i PRO+

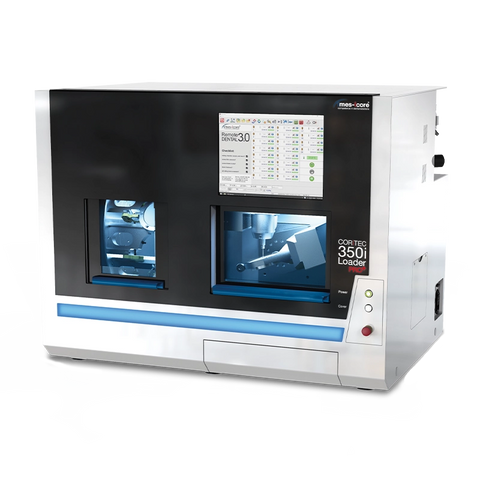

CORiTEC® 350i Loader PRO+

Materials
Materials

CoCr/NEM, titanium, zirconium oxide, aluminum oxide, PMMA, plastics, composites, wax, glass ceramics, hybrid ceramics
Compatibility

98/98.5 mm with step, CAD/CAM blocks, DD Prefabs, Lava® Frames, nt-Trading Premilled Abutments, Medentika PreFace® Abutments
Mechanics/Electronics
Number of axes and processing type

5 axis simultaneous machining
Max. angle of attack of the axis of rotation

A-axis +/- 30° / B-axis +/- 25°
Wet machining Yes
Spindle type

High frequency spindle
Speed ​​Max./Pmax~

60,000 rpm / 2.6 kW
Axle drive

Servo motors with encoder resolution 0.5 μm
Tool holder 6mm shaft
Tool changer

20x
Workpiece changer

Fully automatic (8 blank holders included, expandable to up to 12)
Zero point clamping system Integrated
Connection requirements
Weight 225kg
Width x depth x height

1058x790x857mm
Mains voltage / frequency / max. power

100V - 240V / 50/60Hz
Compressed air supply

6 – 9 bar constant, 60 liters/minute
Suction

iVAC eco+
